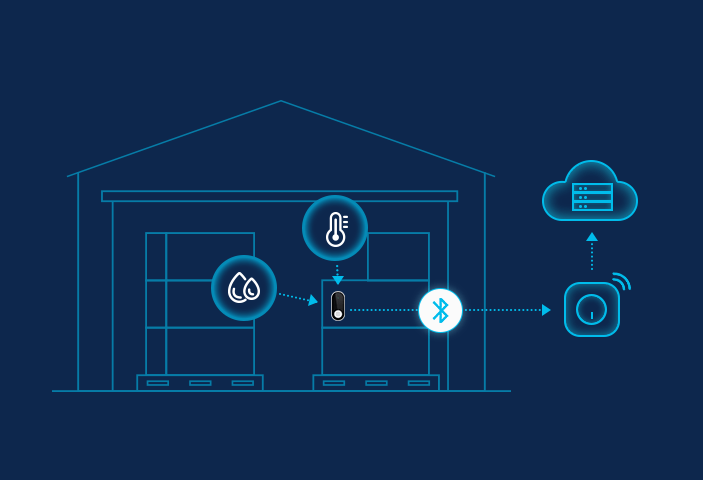

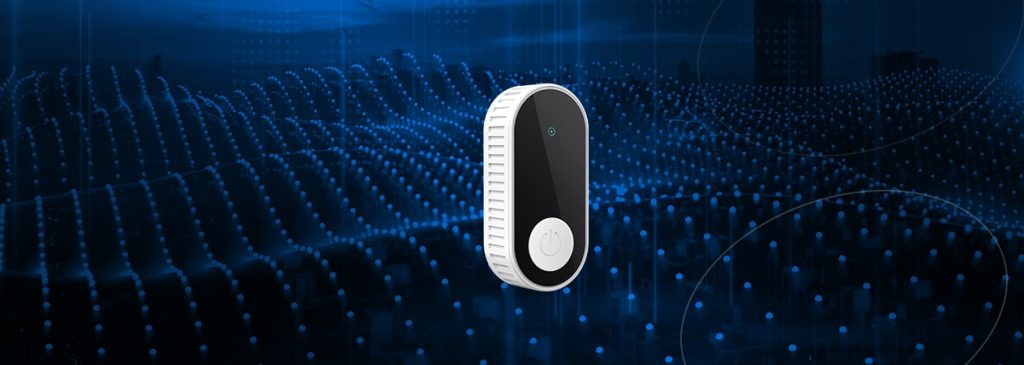

The H4 Temperature Sensor Beacon has a built-in high-precision and wide-range temperature and humidity sensor, making it useful for applications such as museums or stock control. H4 collects data quickly and accurately and reports it to the gateway and other hosts via Bluetooth broadcast for remote monitoring. H4 can also trigger the advertising when it exceeds the preset temperature and humidity range, making it ideal as an alarm reminder.
H4 Temperature Sensor Beacon is the most reliable Bluetooth intelligent assistant for environmental monitoring!
The H4 series sensor Beacon has a built-in high-precision and wide-range temperature and humidity sensor, making it useful for applications such as museums or stock control. H4 collects data quickly and accurately and reports it to the gateway and other hosts via Bluetooth broadcast for remote monitoring. H4 can also trigger the advertising when it exceeds the preset temperature and humidity range, making it ideal as an alarm reminder.
H4 Sensor Beacon is the most reliable Bluetooth intelligent assistant for environmental monitoring!
The H4 Temperature Sensor Beacon can monitor and record temperature and humidity changes in the surrounding environment (such as offices, المتاحف, المصانع, إلخ.) in real time.
In addition to broadcasting temperature and humidity data, H4 can customize the preset storage data rules. It can store up to 4000 datas with timestamps, which can be used for environmental analysis applications.
The H4 series sensor can monitor and record temperature and humidity changes in the surrounding environment (such as offices, المتاحف, المصانع, إلخ.) in real time.
In addition to broadcasting temperature and humidity data, H4 can customize the preset storage data rules. It can store up to 4000 datas with timestamps, which can be used for environmental analysis applications.
Through the preset settings, the H4 Temperature Sensor Beacon triggers an alarm advertising information by intelligently judging that the temperature and humidity sensor data is higher or lower than the pre-set value.

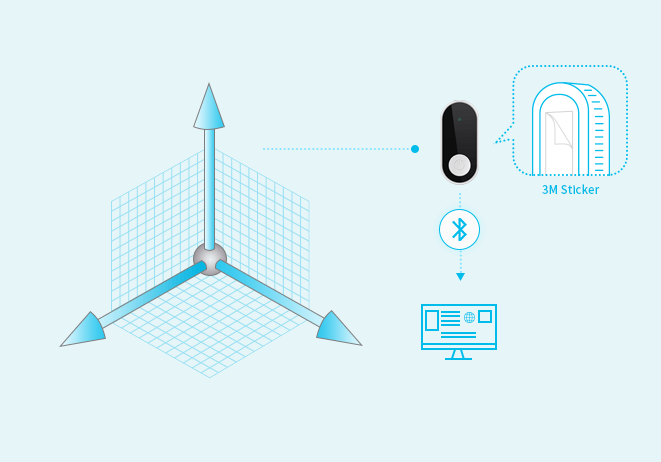

H4 Temperature Sensor Beacon also has an optional 3-axis acceleration sensor for motion trigger or movement data collection. على سبيل المثال, when monitoring goods, H4 will not only monitor the temperature and humidity data of the environment where the goods are located, but also obtain the movement status of the goods.
H4 Temperature Sensor Beacon standard version uses the high-performance Sensirion SHT30 sensor. A high-performance H4 Pro version, with an external probe and SHT31 sensor, is provided to achieve more precision, higher sensitivity, and greater measurement range.
شريحة رئيسية من سلسلة Nordic nRF52
بلوتوث 4.2(بلوتوث 5 متناسق)
3-مقياس التسارع المحوري
خياري
درجة الحرارة والرطوبة
Sensirion SHT30(H4)
Sensirion SHT31(H4 Pro)
أبعاد(طول × عرض × ارتفاع)
69.9x32.2x18.2mm(H4)
87.9x32.2x18.2mm(H4 Pro)
وزن
34.2ز(H4 with battery)
35.1ز(H4 Pro with battery)
مادة
ABS+PC & PMMA
لون
White and Black
التخصيص
شعار,ملصق
زر
ميكانيكي
قاد
Red and Green LED
ضد للماء
IPX4
يتراوح
يصل إلى 120 متر(في منطقة مفتوحة)
قوة تكساس
+4 الحد الأقصى للديسيبل وأسفل إلى -40 ديسيبل
متوسط التيار
41.6uA 1
عمر البطارية
يصل إلى 2.5 سنين 1
عبر الهواء
نعم
يكتب
2 x AAA Battery
سعة
1200ماه
قابلة للاستبدال
نعم
Double side tape
Laid flat
آي بيكون
UUID,رئيسي,صغير,آر إس إس آي @ 1 م
إديستون
خدمة الجات لتكوين UID/URL/TLM/Eddystone
بيانات الاستشعار
Temperature and Humidity Data X-axis, المحور ص, قيم المحور Z بالصيغة الست عشرية 2
معلومات الجهاز
اسم بلي,مستوى البطارية,عنوان ماك,إلخ
درجة حرارة التشغيل
-20درجة مئوية / + 60درجة مئوية
رطوبة (غير التكثيف)
0% ~ 95%
الولايات المتحدة الأمريكية(لجنة الاتصالات الفيدرالية)
أوروبا(م)
يمكن تخصيص شهادات أخرى
آي بيكون
UUID,رئيسي,صغير,آر إس إس آي @ 1 م
إديستون
معرف فريد(معرف مساحة الاسم,InstanceID),عنوان URL,TLM
الإعلان
قوة تكساس,الفاصل الزمني ADV
المستشعر
T&H sampling rate, T&H storage rules Data rate, حجم, حساسية الحركة 2
مشغل
زر الزناد, T&H trigger, كشف الحركة 2
جهاز
اسم بلي,كلمة المرور قابلة للاتصال أو غير قابلة للاتصال,إلخ.
1 1 active SLOT, الفاصل الزمني ADV = 1000 مللي ثانية, Tx Power = 0dBm,1 second temperature and humidity sampling rate
2 Equipped with 3-axis accelerometer sensor T&H means Temperature and Humidity
غرض | وصف | إصدار | مقاس | اخر تحديث |
---|---|---|---|---|
دليل المستخدم | H4&H4 Pro Beacon Product Brief.pdf | 1.2 | 583كيلو بايت | 05/26/2021 |
