MKGW-mini is a BLE to Wi-Fi gateway that promotes data transfer between cloud servers and beacons. Besides being an affordable data transmission option, it transfers data through a 2.4 GHz Wi-Fi connection to different servers. It is perfectly compatible with Mosquito, EMQTT, and other individual cloud server types. MKGW-mini also works perfectly with Aliyun IoT, وAWS إنترنت الأشياء, quickly and conveniently helping you with the development and integration of your IoT system.
• Compact design fitted into a mini size
• Easily deployed
• Flexible power supply method
• Interchangeable AC plug, allowing it to be used in different countries
• Develop your own firmware with our free schematic diagrams
• Easy server integration for further development application
• رمز تطبيق iOS وAndroid مفتوح المصدر لسهولة الاستخدام في جميع أنحاء العالم
MKGW-mini is a BLE to Wi-Fi gateway that promotes data transfer between cloud servers and beacons. Besides being an affordable data transmission option, it transfers data through a 2.4 GHz Wi-Fi connection to different servers. It is perfectly compatible with Mosquito, EMQTT, and other individual cloud server types. MKGW-mini also works perfectly with Aliyun IoT, وAWS إنترنت الأشياء, quickly and conveniently helping you with the development and integration of your IoT system.
• Compact design fitted into a mini size
• Easily deployed
• Flexible power supply method
• Interchangeable AC plug, allowing it to be used in different countries
• Develop your own firmware with our free schematic diagrams
• Easy server integration for further development application
• رمز تطبيق iOS وAndroid مفتوح المصدر لسهولة الاستخدام في جميع أنحاء العالم

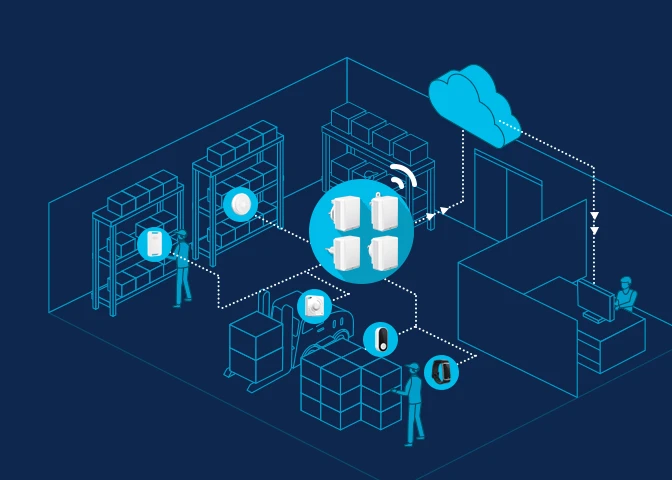

It makes asset tracking in warehouses easy for smooth operations and easier inventory management.
It makes asset tracking in warehouses easy for smooth operations and easier inventory management.
Helps track and identify a detailed location for personnel and equipment in a premise.

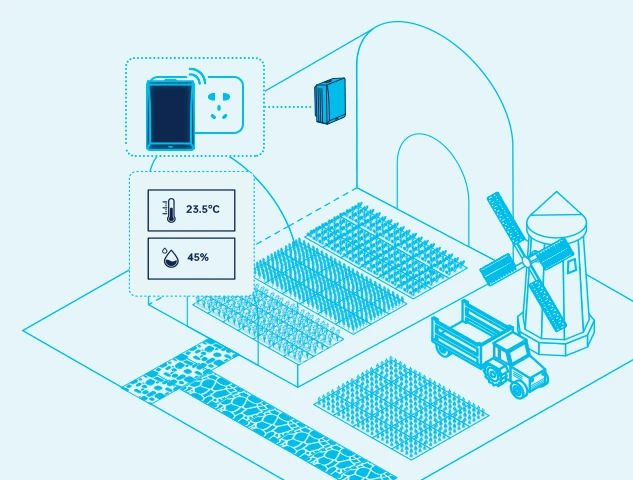

Helps maintain warehouses and rooms at specific conditions, from humidity levels to temperatures.
Helps maintain warehouses and rooms at specific conditions, from humidity levels to temperatures.

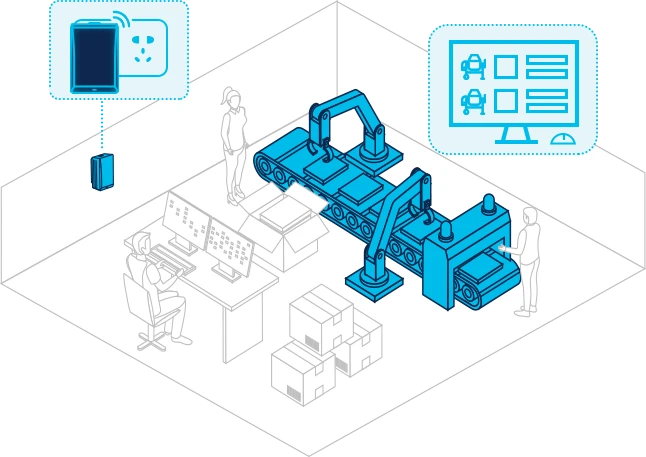

Promotes smoother operations and preventative maintenance by providing a way to track the status of industrial equipment.
MKGW-mini is meant to be a plug-and-play solution. It is not only easy to install but also quite user-friendly. Thanks to its friendly console UI, getting started with it is quite straightforward.
The MKGW-mini product has gone through certification tests like RoHS, SAA, لجنة الاتصالات الفيدرالية, م, and UL. Our partnership with UL and TUV industries has helped us create a standardized and quality product.
MOKO’s in-house team comprises 70 engineers who are in charge of all stages, from R&D to sales. This strong team ensures that you can get your product to market quickly enough without having to worry about common risks.
مزود الطاقة
100-240V AC, 50/60 هرتز
نوع المكونات
US/AU/EU/FR/UK (Interchangeable AC plug)
لون
أبيض
قاد
A single device status indicator
زر
A single button for operations
درجة حرارة التخزين
-10درجة مئوية ~ 50 درجة مئوية
درجة حرارة التشغيل
0 درجة مئوية ~ 40 درجة مئوية
رطوبة العملية
0%～95% (لا التكثيف)
Schematic diagram can be provided for easier development of custom firmware
White label service that allows logo and label customization for better branding
نطاق التردد
2.4غيغاهرتز
وضع الترقية
عبر الهواء
معيار
بليه 4.2
نطاق المسح
100 meters scanning range
المعايير الأمريكية
لفد: UL62368 وUL 498A
EMC & RF: FCC Part 15E & FCC Part 15C
معايير الاتحاد الأوروبي
إي إم سي: في 301 489-1&-17
صحة: في 6231162368
لفد: VDE 0620/BS 1363/NFC 61-314/EN 62368
الترددات اللاسلكية: إن300 328/إن 301 893
الخادم
EMQTT, البعوض, أمازون إنترنت الأشياء, and Aliyun IoT
| غرض | وصف | إصدار | مقاس | اخر تحديث |
|---|---|---|---|---|
| باختصار المنتج | MKGW-mini Product Brief | 1.2 | 808كيلو بايت | 05/26/2021 |
| تخصيص | MKGW-mini Product Specification | 1.0 | 866كيلو بايت | 06/08/2020 |
| دليل الاستخدام | MKGW-mini User Manual V1.0 | 1.0 | 866كيلو بايت | 06/08/2020 |
| بروتوكول الاتصالات | MKGW-mini Communication protocol V1.0 | 1.0 | 866كيلو بايت | 06/08/2020 |
