MK02 nRF52832 Bluetooth Module

MK02 nRF52832 Bluetooth Module is a powerful, highly flexible, ultra low power Bluetooth® 5 module based on Nordic® Semiconductor higher-end nRF52832 SoC solution, which has a 32 bit Arm® Cortex™-M4 CPU with floating point unit running at 64 MHz.

• Nordic® Semiconductor nRF52832 SoC solution
• Bluetooth 5 – 2Mbps, CSA#2, Advertising Extensions
• 512kB Flash and 64kB RAM
• 21.0×13.8×2.3mm (with shield)
• Highly flexible multiprotocol module ideally suited for Bluetooth® Low Energy, Bluetooth® mesh, ANT+ and 2.4GHz ultra low-power wireless applications.
The Icon of Certificates
Previous
Next

MK02 nRF52832 Blutooth Module

MK02 series is a powerful, highly flexible, ultra low power Bluetooth® 5 module based on Nordic® Semiconductor higher-end nRF52832 SoC solution, which has a 32 bit Arm® Cortex™-M4 CPU with floating point unit running at 64 MHz.

• Nordic® Semiconductor nRF52832 SoC solution
• Bluetooth 5 – 2Mbps, CSA#2, Advertising Extensions
• 512kB Flash and 64kB RAM
• 21.0×13.8×2.3mm (with shield)
• Highly flexible multiprotocol module ideally suited for Bluetooth® Low Energy, Bluetooth® mesh, ANT+ and 2.4GHz ultra low-power wireless applications.
The Icon of Certificates

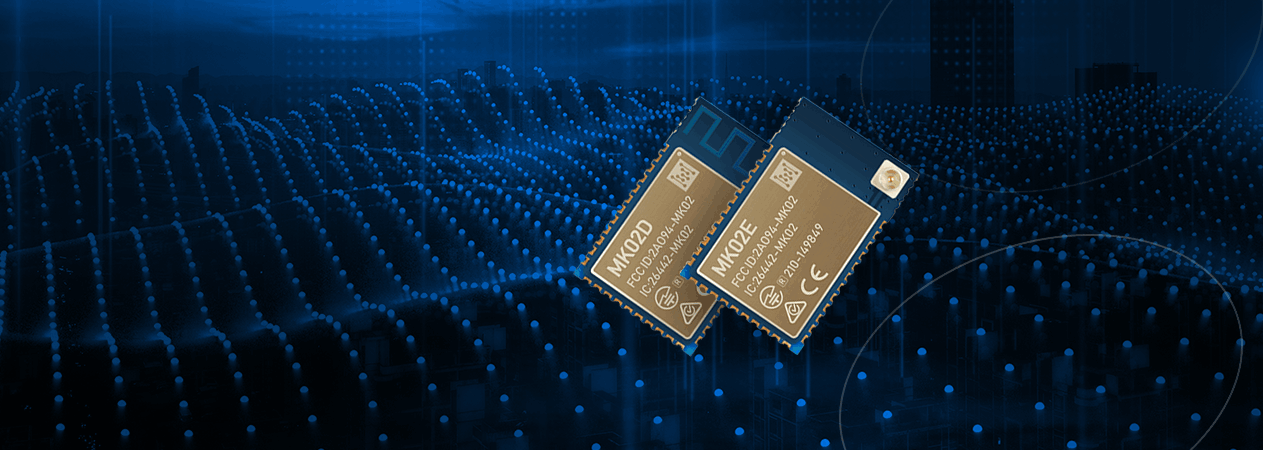

MK02 nRF52832 Bluetooth Module has two different models — MK02D & MK02E.

MK02D nRF52832 Bluetooth Module With High-performance PCB Antenna

MK02D

MK02D integrates a high-performance PCB antenna

MK02E nRF52832 Bluetooth Module With a u.FL connector

MK02E

MK02E uses a u.FL connector and requires an external antenna

Bluetooth

Features

Bluetooth® Low Energy
Bluetooth® Mesh
1M LE PHY
2M LE PHY
Advertising Extensions
CSA #2

LE connections

Concurrent central, observer, peripheral, and broadcaster roles with up to twenty concurrent connections along with one observer and one broadcaster

Radio

Modulations

GFSK at 1 Mbps/ 2 Mbps data rates

Transmit power

+4 dBm maximum Configurable down to -40dBm

Antenna

MK02D – PCB trace antenna
MK02E – External 2.4Ghz antenna

Advertising distance @1Mbps
(Open area)

MK02D – More than 155 meters

Mechanical design

Dimensions

Length:21mm±0.2mm
Width: 13.8mm±0.2mm

Package

34 Plated Half-hole pins

Hardware

CPU

ARM® Cortex®-M4 32-bit processor with FPU, 64MHz

Memory

512 kB flash, 64 kB RAM

Interfaces

3x SPI master/slave with EasyDMA
2x I2C compatible 2-wire master/slave
30 GPIOs
8x 12 bit, 200ksps ADC
3x real-time counter (RTC)
3x 4-channel pulse width modulator (PWM) unit with EasyDMA
UART (CTS/RTS) with EasyDMA
I2S with EasyDMA

Power supply

1.7V to 3.6V

Operating temperature

-40 to 85°C

Clock control

32.768 kHz +/-20 ppm crystal oscillator

Power regulator

DC/DC regulator setup

Software & Documentation

Item Description Version Size Last Update
Datasheet MK02_Bluetooth_Module.pdf 1.0 1.66MB 06/08/2020
Schematic - MK02D MK02D.pdf 1.0 81KB 06/08/2020
Schematic - MK02E MK02E.pdf 1.0 82KB 06/08/2020
Support Link nRF52832_Product_Specification.pdf 1.0 4.92MB 06/08/2020
Product List MOKO_Bluetooth_Module_Family.pdf 1.0 907KB 06/08/2020
Technical Drawings MK02 Library 1.0 - 11/03/2021
Certification MK02-CE 1.0 - 11/03/2021
Certification MK02-FCC 1.0 - 11/03/2021
Certification MK02-IC 1.0 - 11/03/2021
Certification MK02-RCM 1.0 - 11/03/2021
Certification MK02-TELEC 1.0 - 11/03/2021
