MK05 nRF52810 Bluetooth Module

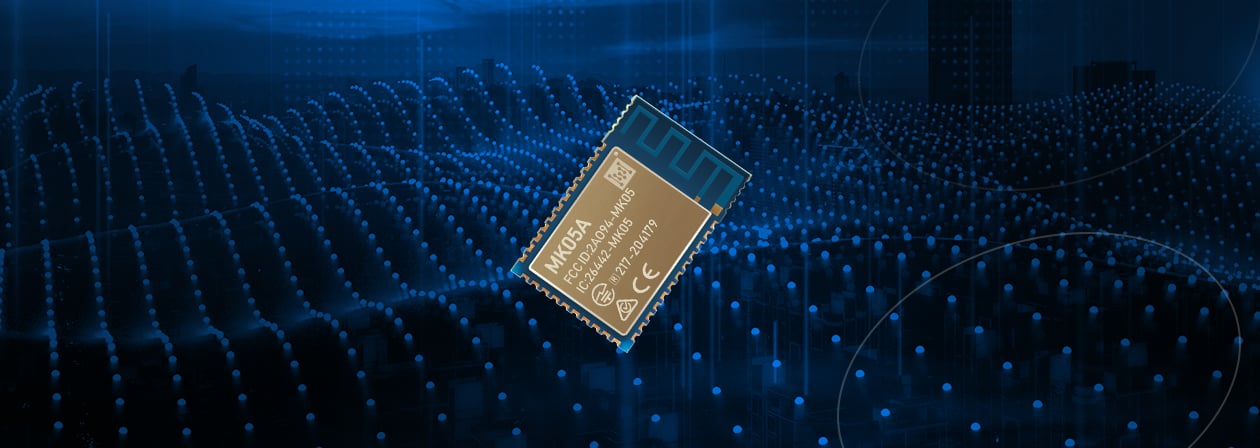

MK05 nRF52810 Bluetooth Module is a powerful, highly flexible, ultra low power Bluetooth® 5 module based on Nordic® Semiconductor lower-end nRF52810 SoC solution, which has a 32-bit Arm® Cortex™-M4 CPU with floating-point unit running at 64 MHz.


• Nordic® Semiconductor nRF52810 SoC solution
• Bluetooth 5 – 2Mbps, CSA#2
• 192kB Flash and 24kB RAM
• 21.0×13.8×2.3mm (with shield)
• Highly flexible multiprotocol module ideally suited for Bluetooth® Low Energy, Bluetooth® mesh, ANT+ and 2.4GHz ultra-low-power wireless applications.
The Icon of Certificates
Previous
Next

MK05 nRF52810 Blutooth Module

MK05 series is a powerful, highly flexible, ultra low power Bluetooth® 5 module based on Nordic® Semiconductor lower-end nRF52810 SoC solution, which has a 32-bit Arm® Cortex™-M4 CPU with floating-point unit running at 64 MHz.


• Nordic® Semiconductor nRF52810 SoC solution
• Bluetooth 5 – 2Mbps, CSA#2
• 192kB Flash and 24kB RAM
• 21.0×13.8×2.3mm (with shield)
• Highly flexible multiprotocol module ideally suited for Bluetooth® Low Energy, Bluetooth® mesh, ANT+ and 2.4GHz ultra-low-power wireless applications.
The Icon of Certificates

MK05 nRF52810 Bluetooth Module has two different models — MK05A & MK05B

MK05A nRF52810 Bluetooth Module With High-performance PCB Antenna

MK05A

MK05A integrates a high-performance PCB antenna

MK05B nRF52810 Bluetooth Module With a u.FL connector

MK05B

MK05B uses a u.FL connector and requires an external antenna

Bluetooth

Features

Bluetooth® Low Energy
1M LE PHY
2M LE PHY
CSA #2

LE connections

Concurrent peripheral and broadcaster roles

Radio

Modulations

GFSK at 1 Mbps/ 2 Mbps data rates

Transmit power

+4 dBm maximum
Configurable down to -40dBm

Antenna

MK05A – PCB trace antenna
MK05B – External 2.4Ghz antenna

Advertising distance @1Mbps
(Open area)

MK05A – More than 155 meters

Mechanical design

Dimensions

Length: 21mm±0.2mm
Width: 13.8mm±0.2mm
Height: 2.3mm+0.1mm/-0.15mm

Package

34 Plated Half-hole pins

Hardware

CPU

ARM® Cortex®-M4 32-bit processor with FPU, 64MHz

Memory

192kB flash, 24 kB RAM

Interfaces

SPI master/slave with EasyDMA
UART (CTS/RTS) with EasyDMA
4-channel pulse width modulator (PWM) unit with EasyDMA
Quadrature decoder (QDEC)
2x real-time counter (RTC)
8x 12-bit, 200ksps ADC
30 GPIOs

Power supply

1.7V to 3.6V

Operating temperature

-40 to 85°C

Clock control

32.768 kHz +/-20 ppm crystal oscillator

Power regulator

DC/DC regulator setup

Software & Documentation

Item Description Version Size Last Update
Datasheet MK05_Bluetooth_Module.pdf 1.0 1532KB 06/08/2020
Schematic - MK05A MK05A.pdf 1.0 81KB 06/08/2020
Schematic - MK05B MK05B.pdf 1.0 82KB 06/08/2020
Support Link nRF52810_Product_Specification.pdf 1.0 6.69MB 06/08/2020
Product List MOKO_Bluetooth_Module_Family.pdf 1.0 907KB 06/08/2020
Technical Drawings MK05&06 Library 1.0 - 20/01/2021
Certification MK05-CE 1.0 - 20/01/2021
Certification MK05-FCC 1.0 - 20/01/2021
Certification MK05-IC 1.0 - 20/01/2021
Certification MK05-RCM 1.0 - 20/01/2021
Certification MK05-TELEC 1.0 - 20/01/2021
