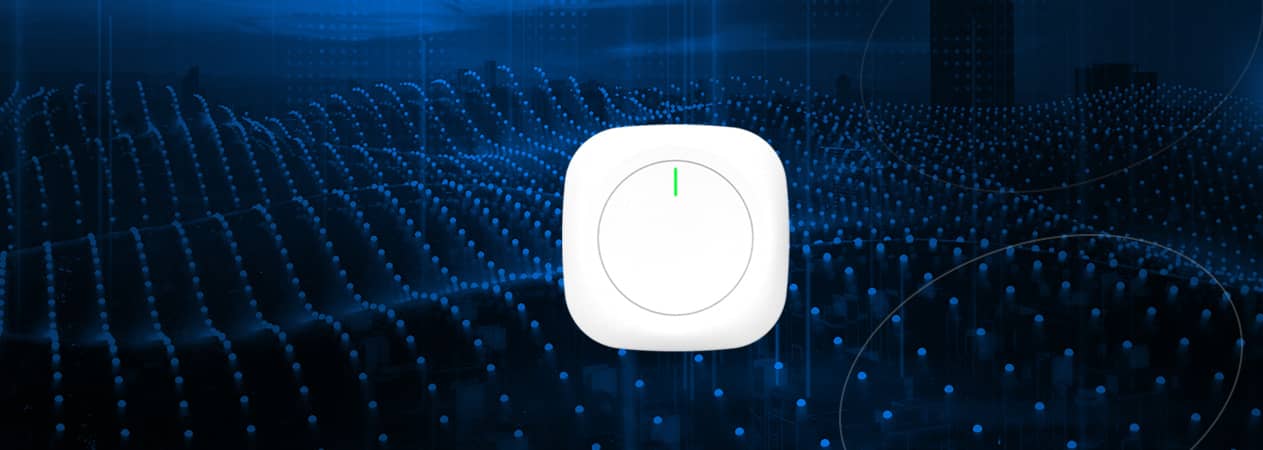

MKGW1-BW Bluetooth Gateway

MKGW1 is a multi-wireless IoT gateway with Bluetooth LE (BLE) and Wi-Fi.
MGKW1 is mainly used to captures BLE advertising data such as iBeacon, Eddystone, Sensor data from MOKO Beacons, or other BLE devices. MKGW1 can send all the data to the cloud server by MQTT or HTTP via Wi-Fi or Ethernet connection.

• MediaTek MT7688 & Nordic nRF52832
• Multi-power supply – 48V PoE/ 9V DC/ 5V USB
• Ethernet and WiFi to access the internet
• Support MQTT and HTTP protocol
• Provide SDK for custom software development

MQTT and HTTPS
Previous
Next

MKGW1-BW Bluetooth Gateway

MKGW1 is a multi-wireless IoT gateway with Bluetooth LE (BLE) and Wi-Fi.
MGKW1 is mainly used to captures BLE advertising data such as iBeacon, Eddystone, Sensor data from MOKO Beacons, or other BLE devices. MKGW1 can send all the data to the cloud server by MQTT or HTTP via Wi-Fi or Ethernet connection.

• MediaTek MT7688 & Nordic nRF52832
• Multi-power supply – 48V PoE/ 9V DC/ 5V USB
• Ethernet and WiFi to access the internet
• Support MQTT and HTTP protocol
• Provide SDK for custom software development

MQTT and HTTPS
BLE+Wi-Fi

BLE+Wi-Fi

Ethernet

Ethernet

Real-time

Real-Time Scanning

Icon of LED

LED

Icon of DFU-OTA

OTA

Monitor Your Assets in Real Time

Does your business spend a lot of its annual budget on management, such as employees’ location monitoring, assets usage, and the warehouse temperature and humidity?
With the help of MKGW1-BW gateway and MOKO Bluetooth Beacons, you can monitor assets quickly and easily in real-time to save the amount.

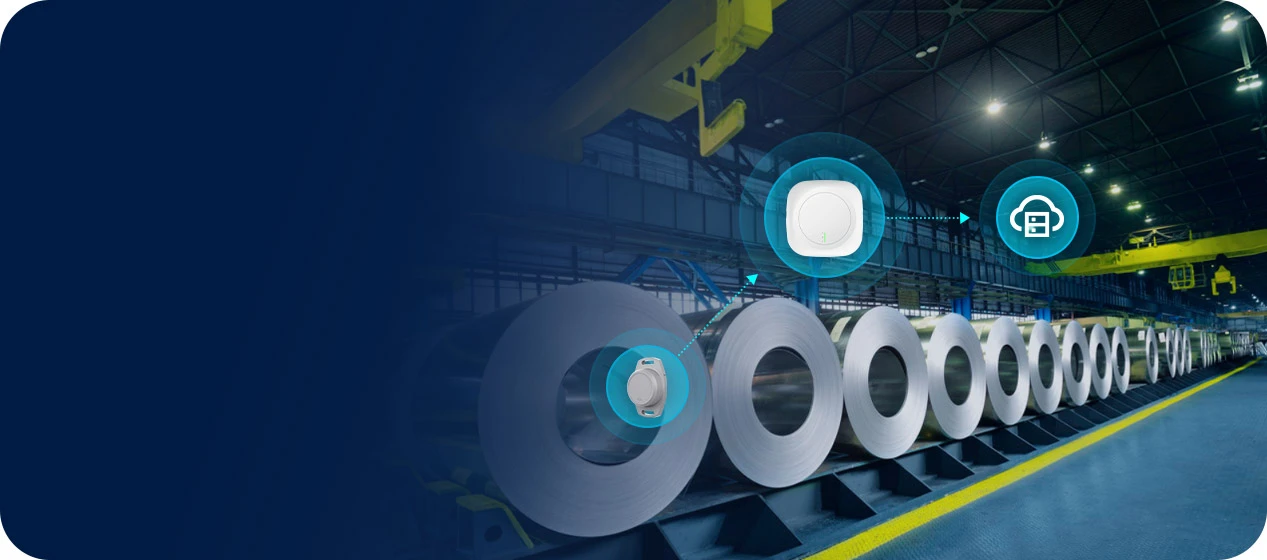

The Application of MKGW1-BW for Monitoring Your Assets in Real Time

Monitor Your Assets in Real Time

Does your business spend a lot of its annual budget on management, such as employees’ location monitoring, assets usage, and the warehouse temperature and humidity?
With the help of MKGW1-BW gateway and MOKO Bluetooth Beacons, you can monitor assets quickly and easily in real-time to save the amount.

The Technology Behind MKGW1-BW Gateway

The technology behind MKGW1-BW gateway

With central Bluetooth real-time scanning technology, MKGW1-BW multi-wireless IoT gateway can obtain all Bluetooth Beacon advertising information such as iBeacon, Eddystone, Sensor Data, etc., and send the required information to the cloud through MQTT or HTTP protocol.

Simple operation and easy deployment

MKGW1-BW is easy to install and provides a variety of power modes to ensure that you can use it in a variety of situations.
And the friendly console UI facilitates you to easily configure the parameters of the gateway and quickly start your IoT application.

Easy Configurable parameters and Installation of MKGW1-BW

Simple operation and easy deployment

MKGW1-BW is easy to install and provides a variety of power modes to ensure that you can use it in a variety of situations.
And the friendly console UI facilitates you to easily configure the parameters of the gateway and quickly start your IoT application.

The Dimensions of MKGW1-BW Bluetooth Gateway

Physical Properties

Dimensions(LxWxH)

120.0x120x22.5mm

Weight

136g

Material

ABS-FR

Color

White

Customization

Logo,Label

Button

1 Power Button and 1 Reset Button

LED

3 x Intelligent LED

Power Supply

Mirco USB

5V/ 1A

DC Adapter

9V/ 1A

PoE

48V/ 1A

Installation

Horizontal, Ceiling, Wall

Wi-Fi Performance

Main chip

MediaTek MT7688AN

RAM

DDR2 128MB

SPI Flash

32MB

Network Modes

Router, Reaperter

Wireless

IEEE 802.11b/g/n

Wi-Fi

1T1R 2.4 GHz with 150 Mbps PHY Data Rate

Ethernet

1-port 10/100 FE PHY

Tx power

18dBm

Channels

11 channels

Channel Bandwidth

20/ 40Mhz

Antenna

1.1dBi FPC antenna

Range

Up to 130m in an open area

Security

Open/ WEP/ WPA/ WPA2

Upgrade

OTA/ USB Disk

Environmental Requirements

Operational Temperature

-20°C to + 60°C

Humidity (non-condensing)

0% to 95%

Server Access Protocols

MQTT, HTTP

Certifications

USA(FCC)

Europe(CE)

Other certifications can be customized

Bluetooth Performance

Main Chip

Nordic nRF52832

Role

Observer

Rx Signal Strength

0dBm maximum at <0.1% BER

Rx sensitivity

-96 dBm @Bluetooth LE 1Mbps

Antenna

1.4dBi FPC Antenna

Scanning Range

Up to 150m in an Open Area

Scanning Capability

315 BLE Packets Per Second Maximum

Upgrade

OTA

BLE Data Receiver

BLE Data Receiver

Asset Management

Asset Management

Personnel Tracing

Personnel Tracing

Environmental Monitoring

Environmental Monitoring

Indoor Positon

Indoor Positon

Software & Documentation

Item Description Version Size Last Update
Main Chip Solution WC7220B0_Product_Brief.pdf 1.0 866KB 06/08/2020
User Mannual WC7220B0_Product_Brief.pdf 1.0 866KB 06/08/2020
Schematic WC7220B0_Product_Brief.pdf 1.0 866KB 06/08/2020
Schematic WC7220B0_Product_Brief.pdf 1.0 866KB 06/08/2020
Schematic WC7220B0_Product_Brief.pdf 1.0 866KB 06/08/2020
Schematic WC7220B0_Product_Brief.pdf 1.0 866KB 06/08/2020
